Products Introduction
This thermometer measures the body temperature through receiving the infrared energy radiation from the surface of objects. It is with forehead temperature mode,and ear temperature mode. The measurement result directly shows on the LCD screen It is easy, hygiene and accurate. It can also test the temperature of object surface, room, food, bath water, baby milk, etc. The device is widely used for home healthcare, medical institutes and many other occasions. The product is mainly composed with infrared temperature sensors, signal receiving processor, buttons, buzzer, LCD display, battery, etc
Features
-LCD digital display with backlight, clear for readings.
-High-tech innovative infrared sensor: safe and fast measurement in 1s.
-Body temperature measurement with dual modes: measure body temperature via forehead or ear.
-Body temperature range: 32~42.9°C; object temperature: 0~100°C.

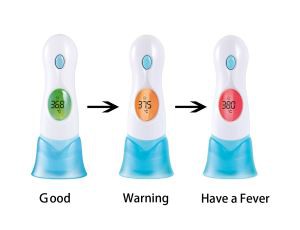

-Fever alarm function: when reach 38°C, red backlight and short beeps to warn the patient.
-2 temperature units for conversion: Fahrenheit or Celsius.
-Capacity of storing 20 groups of measurement data.
-Auto shut off: 30 seconds without operation.
Bring ease of use to every household or professional setting.
Specification
Color: White + Blue
Display Resolution: 0.1°C/0.1°F
Body Mode: 32~42.9°C / 89.6~109.2°F
Surface Mode: 0~100°C / 32~212°F
Accuracy: Body Mode: (+/-)0.2°C/0.4°F; Surface Mode: (+/-)1°C/1.8°F
Measuring Distance: 2mm~5mm
Measuring Time: 1s
Auto Shut Off: 30s
Power Supply: 2 * 1.5V AAA Batteries(NOT Included)
Operating Conditions: 16~35°C / 60.8~95°F; ≤85%
Storage Conditions: -25~55°C / -13~131°F; ≤90%
Item Size: 152 * 44 * 30mm / 5.98 * 1.73 * 1.2in
Item Weight: 72g / 2.54oz(without batteries)
Package Size: 18 * 10.5 * 5.8cm / 7.08 * 4.13 * 2.3in
Package Weight: 141g / 4.98oz
Measurement method Contact-Type Measurement Mode Body Mode 32.0°C~42.9°C(89.6°F~109.2°F) Surface Mode 0°C~100°C(32°F~212°F) Measurement accuracy Body Mode ±0.3°C(0.54°F) Surface Mode ±1.0°C(1.8°F) Display resolution 0.1°C/°F Operating environment 16° C ~ 35 ° C (60.8° F to 95 ° F) <= 85%="" moisture=""> Storage condition - 25 ° ~ 55 ° C - (-13° F to 131 ° F)<= 90%="" moisture=""> Power supply DC1.5V×2 Power consumption When off <= 10=""> Auto power-off When measuring<= 30=""> In 30 seconds Dimensions 30mm * 44 mm *152 mm(length x width x height) Weight About 72 g (without battery) Dimensions 152mm * 44 mm *30mm(length x width x height)
Shape structure
1. Mode conversion cover; 2. Infrared probe; 3. Measuring key; 4. LCD display; 5. Memories key and conversion key 6. handle 7. Battery cover
Operation Method
1. Forehead temperature measurement.
-Install the batteries to power on, make sure the screen display (head) and the mode conversion cover before the measurement.
-Hold the thermometer and point the device to the forehead, measurement key directly or keep pressing measurement key, scan forehead ,when buzzer beeps, the temp.will display on the LCD screen.Keep the probe cover contacting the forehead when measuring.
2. Ear temperature measurement
-Take off the mode conversion cover, then put on the ear probe cover .Insert the probe into the ear. Press the measuring key to measure directly,when the buzzer beeps, the temperature will display on the screen.
-Make sure that the probe cover is taken off and converted to the Ear and ambient measuring mode.
Prompt :
Don't push hard into the ear to avoid hurting the eardrum
3. The object temperature measurement.
-Take off the Cover of mode conversion, point the thermometer to the object, keep the probe 3~5mm to the object. Press the measuring key to measure directly,when the buzzer beeps, the temperature will display on the screen.
-Make sure that the cover of mode conversion is taken off and converted to the Ear and the object mode.
4. Ambient temperature measurement
-Take off the mode conversion cover.
-point the prove to the air and press the start key.
Prompt
1.when not used for a long time, please take out the battery to prevent leakage. It is forbidden to put waste battery in the fire.
2. According to local regulations, properly handle the waste batteries to avoid pollution.
Maintenance and matters needing attention
Please keep the inner cavity of the sensors and probes clean, otherwise it will affect the measuring accuracy.
Cleaning methods:
1. The device only needs routine cleaning, and period or times can be decided according to user's need.
2. The surface cleaning: use a clean soft cloth or cotton swab stick moistened with a little medical alcohol or water to wipe the dirt.
3. Probe and sensor inner cavity cleaning: with a clean soft cloth or cotton swab dipped with a little medical alcohol gently wipe the probe at the top of the inner cavity or sensors, and do not use until the alcohol completely evaporates.
(1) Before use, please read the instructions, and make sure the battery has been installed.
(2) Prohibit the thermometer into any liquid, no long time use in high or low temperature environment.
(3) No collision, falling and sharp objects mix, it is forbidden to disassemble the thermometer.
(4) Do not use in strong electromagnetic interference environment.
(5) The thermometer is placed in the position not touched by children.
(6) Practice is suggested to get familiar with the measurement methods; try not to change the product factory settings.
(7) The measurement results cannot replace the physician diagnosis.
(8) Use the thermometer in a stable temperature environment. If the environment temperature changes too much, for example from outdoor to indoor, please put the thermometer and wait for about half an hour minutes before measuring.
(9) Don't measure body temperature after measuring extremely high or low temperature. Put the device for 10 minutes before measuring.
(10) Try to avoid using the thermometer when drying the hair, drenching water, sweating, and putting on skin cosmetics. Don't measure the temperature after doing sports, washing and 30 minutes before dinner.
(11) No special maintenance is needed to the use process. Please contact the vendor or manufacturer for fault.
Package Contents
1 * Infrared Thermometer
1 * User Manual (English)
